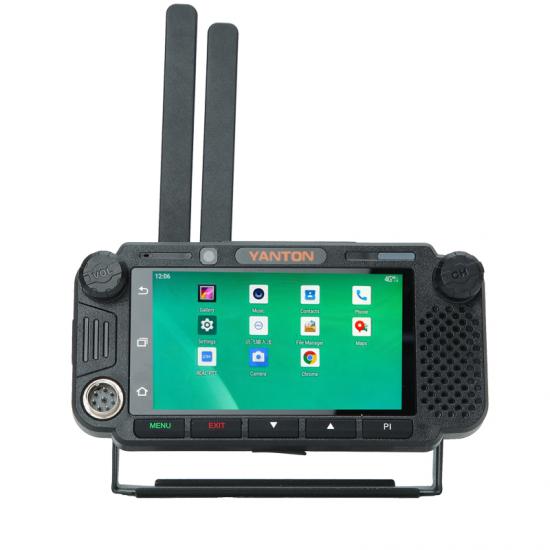

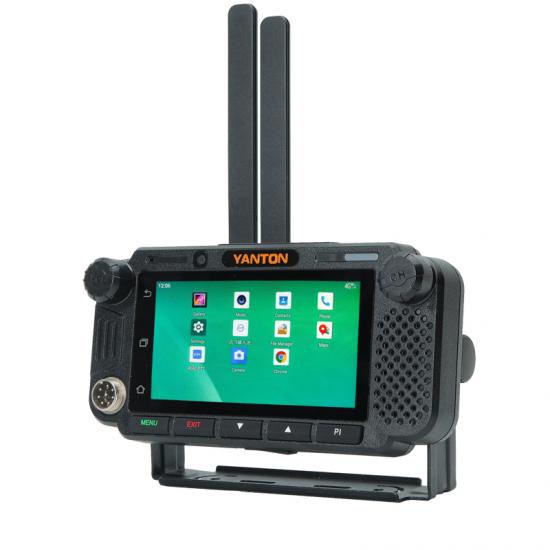

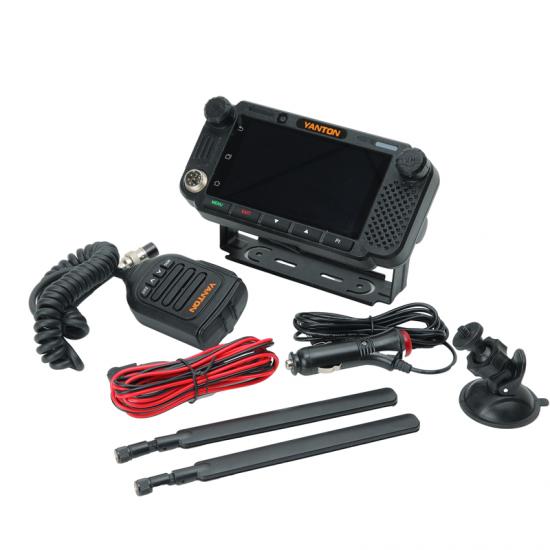

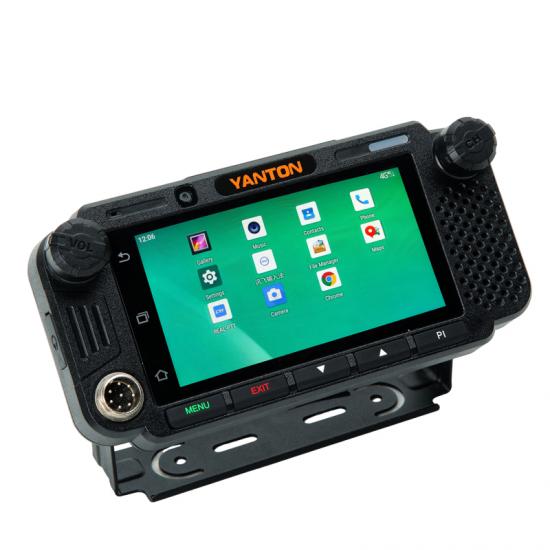

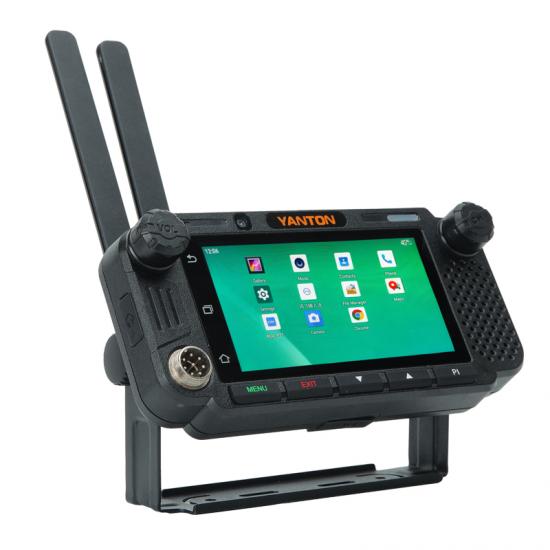

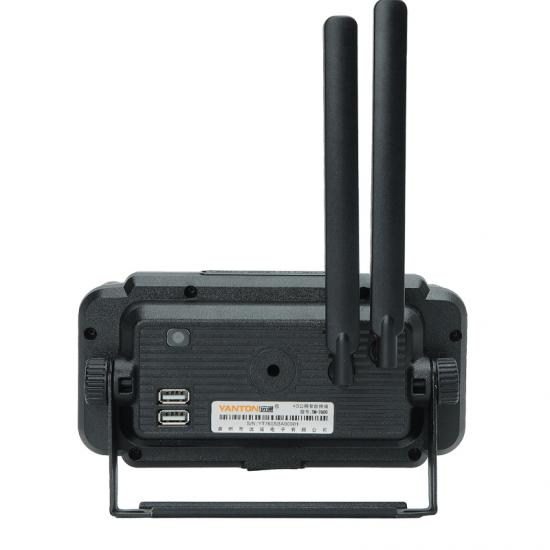

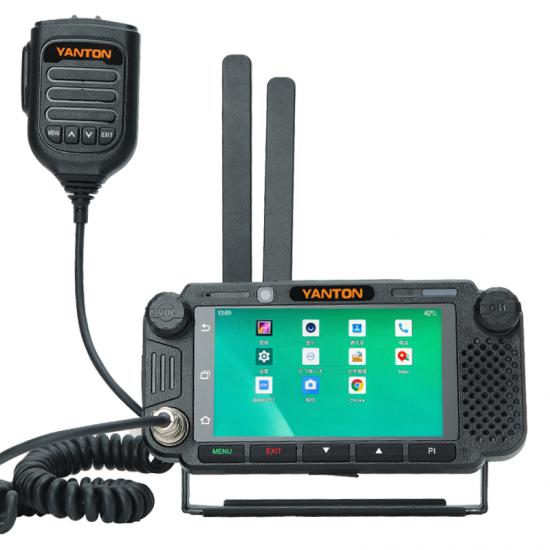

Android 4G PTT PoC Mobile Radio WiFi Smartphone Vehicle Car Radio

Android 4G PTT PoC Mobile Radio WiFi Smartphone Vehicle Car Radio

New generation of android LTE/4G wifi and bluetooth POC radio that enable the usage of PTT over  networks, support platform zello etc,delivering wide coverage expansive coverage in every area and situation.

  • Product Origin:

    China
  • Item NO.:

    TM-7600
  • Shipping Port:

    Quanzhou
  • Color:

    Black
  • Payment:

    T/T,PayPal,Western Union
  • MOQ:

    2
Product Detail

Android  4G PTT PoC Mobile Radio WiFi Smartphone Vehicle Car Radio


 New generation of android LTE/4G wifi and bluetooth POC radio that enable the usage of PTT over  networks, support platform zello etc,delivering wide coverage expansive coverage in every area and situation.


Quick Details

Android 9.0
Front & Rear Camera
Bulit-in Wifi/Bluetooth/GPS
Intelligent Touch Display
Dual Sim Card slots+ TF Card Slot
NFC Function

Specification


General

Model

TM-7600 Smart Mobile Radio

Operation System

Android 9.0

Working Voltage

9.8-14VDC

Dimension (H*W*D)

187mm*95mm*46mm

Weight

≈690g

Working Temperature

-20°C ~ 55°C

Storage Temperature

-30°C ~ 70°C

Waterproof Level

IP54

Frequency

EU version

GSM: B2/B3/B5/B8
WCDMA: B1/B2/B5/B8
TDD-LTE: B38/B39/B40/B41
FDD-LTE: B1/B3/B5/B7/B8/B20/B28A/B28B

US version

GSM: B2/B3/B5/B8
WCDMA: B1/B2/B4/B5/B8

TDD-LTE:B38/B40
FDD-LTE:B2/B4/B5/B7/B8/B12/B17/B28a/B28b/B66

Wi-Fi

IEEE 802.11 / b / g / n2.4G and 5G

BT

BT4.2

GPS

GPSAGPS

NFC

support

Hardware

CPU

MTK6739

Memory

1GBRAM+ 8GBROM

TF Card

Support up to 32G

SIM card slot

Dual micro SIM card

Upgrade port

Micro

Extended port

2* USB2.0

power interface

DC

Audio interface

3.5mm

Screen Size

5.0 inch touch screen

Resolution

TFT 480*640

Camera

Front Camera:5.0MPRear Camera:13.0MP

Android Mobile Radio

Service



Package: Each package in gift box; 20PCS in strong carton
Payment: Paypal, Western Union, T/T, LC
Lead time: Sample: 1-3 working days
Wholesales order: 500PCS within in 5-7 days
OEM order: 7-15 days after receiving your deposit and confirm sample package design.

Shipping



Express: door to door service DHL,UPS, FEDEX, TNT and so on.
By air: To destination airport, need to assist clear customs, without door to door service.
By sea: To destination port, need to assist clear customs, without door to door service.
The shipping cost depends on weight and dimension, will recommend the cheapest and safest way according your detail quantity.
Shipping period depend on your location. If deliver by express, it take 3-7 days from China to destination country. Some remote need more 1-3 days



A free consultation

Email us with any questions or inquiries or use our contact data. We would be happy to answer your questions.
