POC Mobile Radio
Home

Public network radio

POC Mobile Radio

POC LTE 4G Vehicle Mounted Mobile Car Radio

POC LTE 4G Vehicle Mounted Mobile Car Radio

Push To Talk Over Cellular 4G Car Radios,new generation of LTE/4G POC mobile radio that enable the usage of PTT over  networks,  excellent data transmission rates and the  speech quality 4KB and 8KB slection, delivering wide coverage expansive coverage in every area and situation.

  • Product Origin:

    China
  • Item NO.:

    TM-7700
  • Shipping Port:

    Quanzhou
  • Color:

    Black
  • Payment:

    T/T,PayPal,Western Union
Product Detail

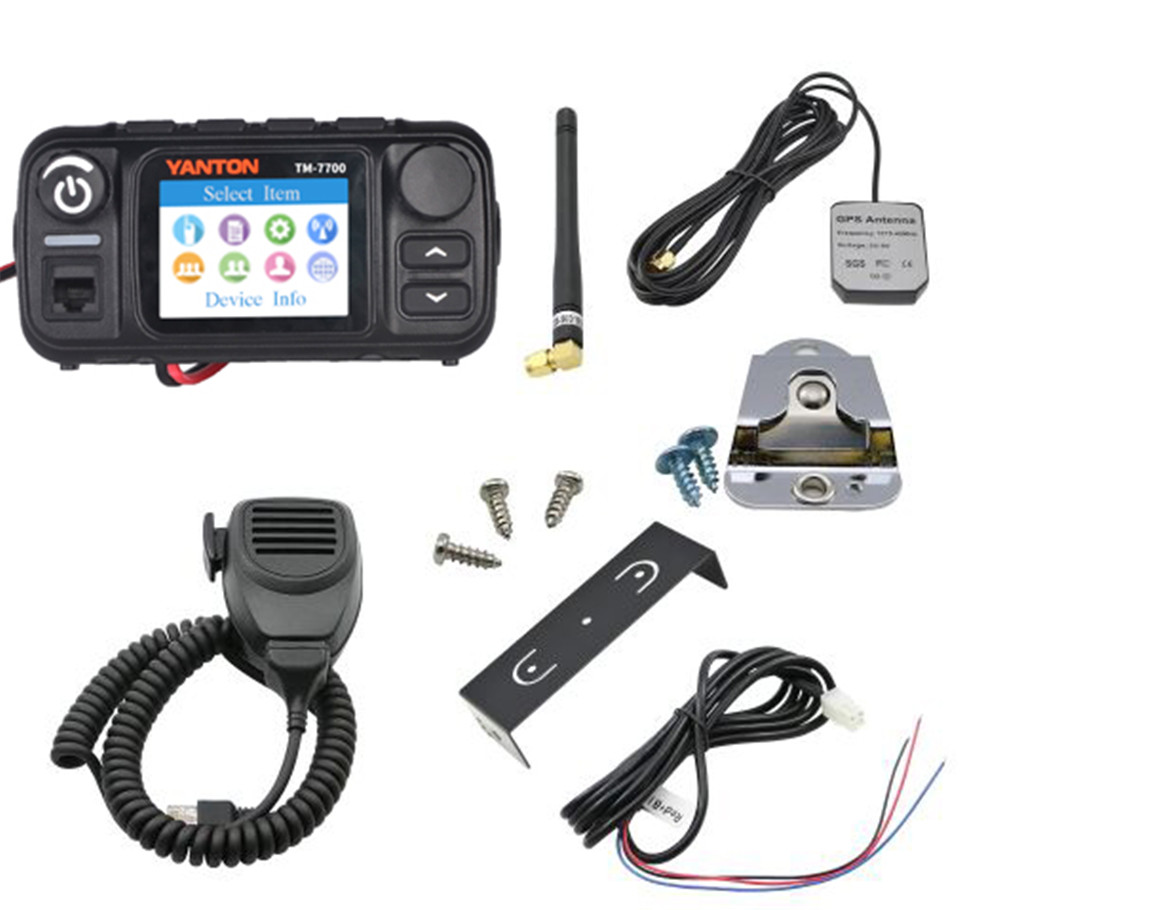

POC LTE 4G Vehicle Mounted Mobile Car Radio

Push To Talk Over Cellular 4G Car Radios,new generation of LTE/4G POC mobile radio that enable the usage of PTT over  networks,  excellent data transmission rates and the  speech quality 4KB and 8KB slection, delivering wide coverage expansive coverage in every area and situation.

Quick Details

1.GPS Function
2.SOS & APRS function
3.Voice Prompt
4.Group Call, Private Call, Friends Call, Emergency Call
5.Network Signal Strength Prompt

Specification

Operator System

 LINUX

LTE/4G

Band:B1/B2/B3/B4/B5/B7/B8/B12/B20/B38/B39/B40/B41

WCDMA

 Band 1:2100M Band2:1900M Band5:850M Band 8:900M

GSM

 Band 1:2100M Band2:1900M Band5:850M Band 8:900M

Receive sensitivity

 LTE/4G:≤-100dBm

LTE/4G:≤-100dBm

WCDMA 2100:≤-110dBm

WCDMA 2100:≤-110dBm

GPS

 GPS Positioning, Support A-GPS function

GPS sensitivity

 GPS L1 Band:1.57542GHz

GLONASS Band:1597.5-1605.8Mhz

BeiDou:1559.05-1563.8MHZ

Catch-144dBm, Track-159dBm

GSM CS:UL 9.6kpbs/DL9.6kpbs

GNSS current:100mA(GSM/CDMA/UMTS/LTE)

Dimensions

 153mm(L)*78mm(W)*45mm(H)

weight

 570g

voltage

 12-24V/DC

Data Speed Rate

 EDGE:Multi-slot Class 12

WCDMA CS:UL 64kpbs/DL 64kpbs

WCDMA CS:UL 384kpbs/DL 384kpbs

HSDPA/WCDMA/EDGE/GPRS/GSM

Working Current

 Require 7.4V-240V Power Supply(Notice that 5V Power Band NOT work)

Working Temperature

 -20~50℃

Color display

 2.8inch

Sim card type

 Normal sim card


Push To Talk Over Cellular 4G Car Radios

POC Mobile Radio4G Vehicle Car Radio

Service


Package: Each package in gift box; 20PCS in strong carton
Payment: Paypal, Western Union, T/T, LC
Lead time: Sample: 1-3 working days
Wholesales order: 500PCS within in 5-7 days
OEM order: 7-15 days after receiving your deposit and confirm sample package design.


Shipping


Express: door to door service DHL,UPS, FEDEX, TNT and so on.
By air: To destination airport, need to assist clear customs, without door to door service.
By sea: To destination port, need to assist clear customs, without door to door service.
The shipping cost depends on weight and dimension, will recommend the cheapest and safest way according your detail quantity.
Shipping period depend on your location. If deliver by express, it take 3-7 days from China to destination country. Some remote need more 1-3 days.



A free consultation

Email us with any questions or inquiries or use our contact data. We would be happy to answer your questions.
